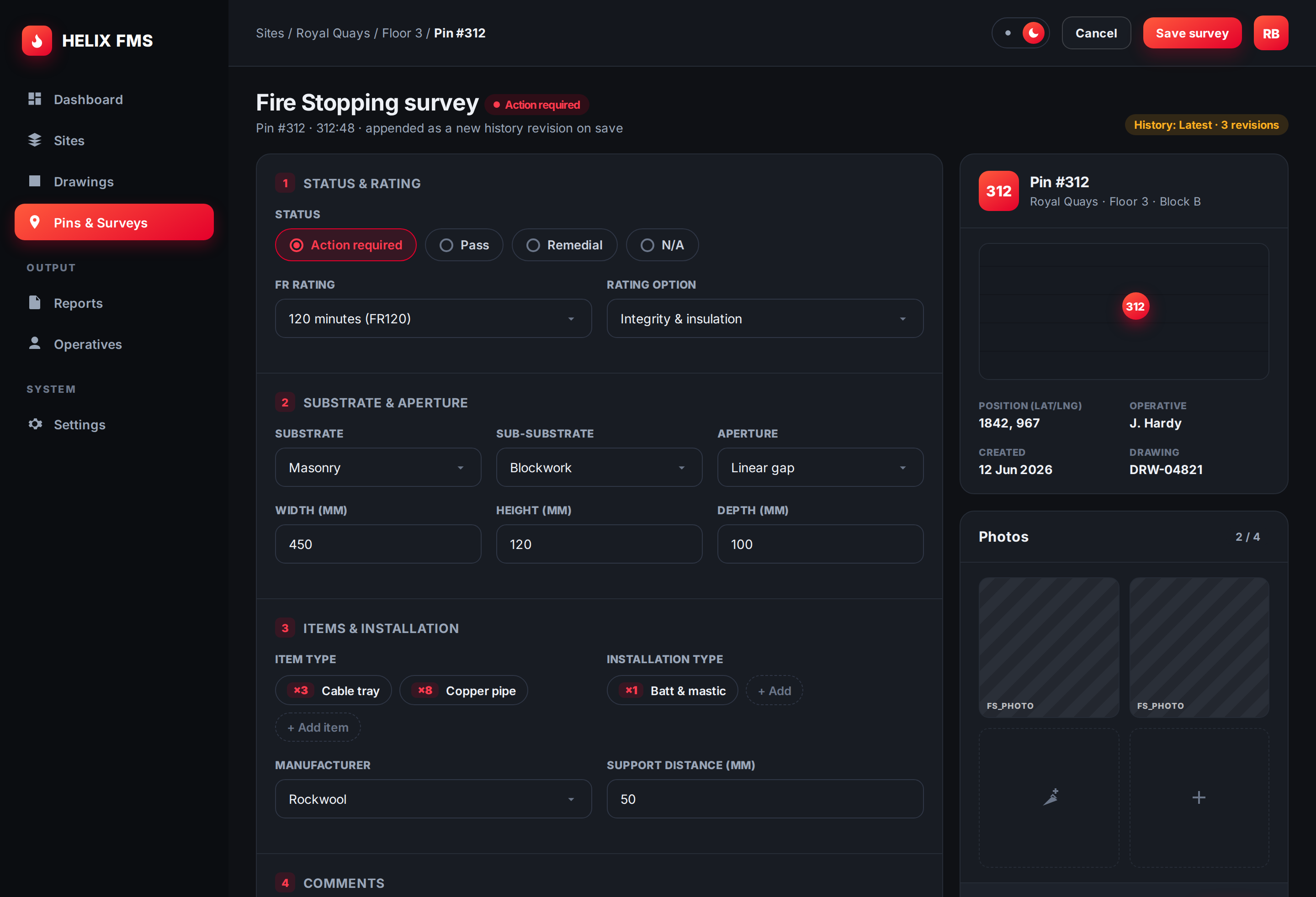

Fire Stopping surveys
Substrate, aperture, rating & support — every FS field captured directly on the drawing.
Fire Stopping & Fire Doors compliance
From drawing
From drawing
to compliance,
without the paper.

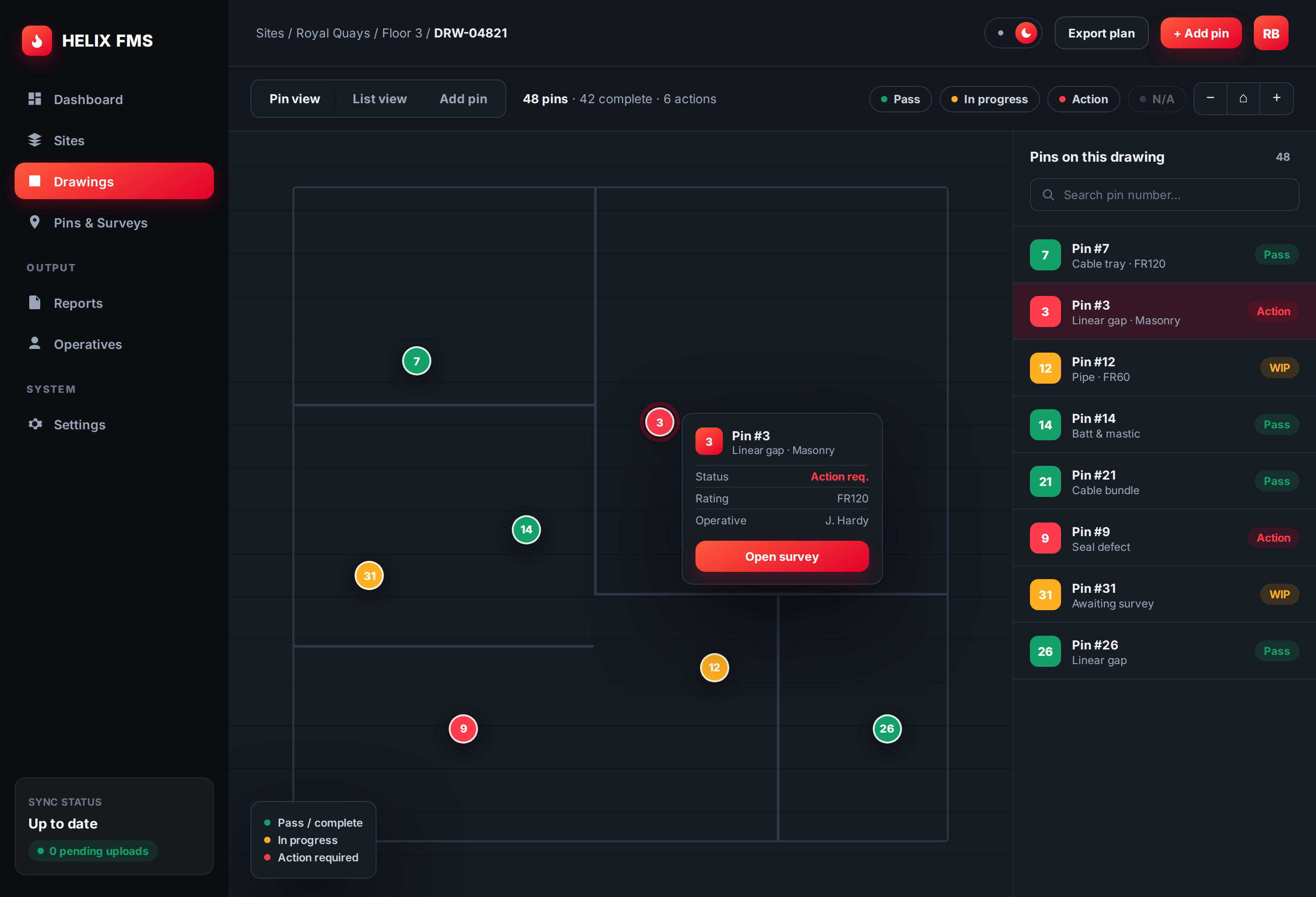

Survey fire-stopping penetrations and fire doors straight on the floor plan. Capture pins, photos and conditions offline on site — then sync clean, audit-ready reports back to the office.
61k+PINS SURVEYED
1,240SITES MANAGED
100%OFFLINE CAPTURE
2 survey typesFire stopping & fire doors
100% offlineCapture without a connection
3 report formatsPDF · Excel · CSV
Per-drawing accessControl who sees what
Fire Door inspections
Leaf, gaps, seals, hinges and remedials — checks adapt to the doorset type automatically.
Offline Android capture
Survey all day with no signal. Down-sync drawings, up-sync results when you reconnect.

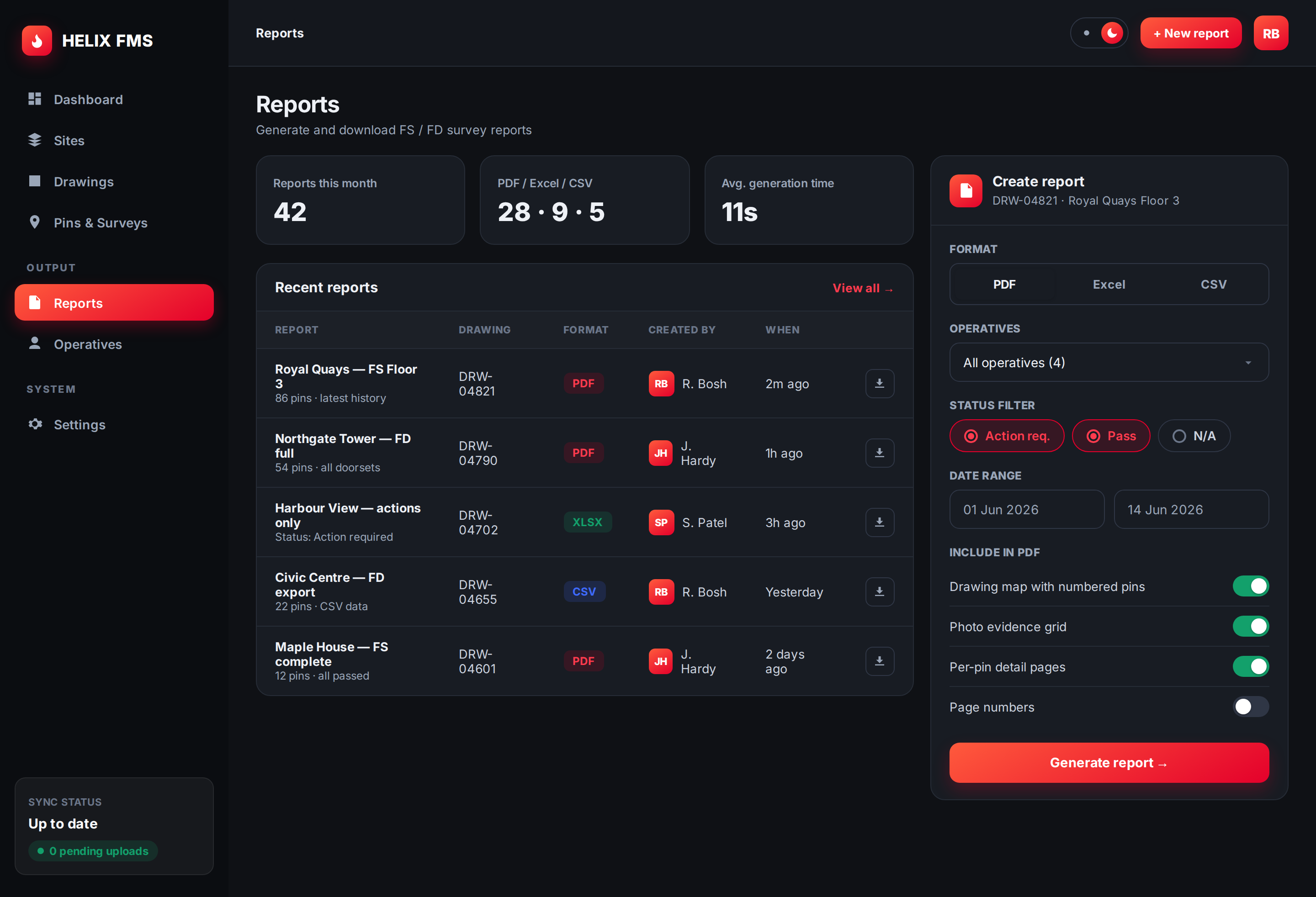

PDF & Excel reports
Numbered plans, photo evidence and filtered pin tables — exported in a single click.
See it in action
From the floor plan to a finished report.
The same data, captured once on site, flows straight through to review and reporting.
How it works
Three steps from site visit to sign-off.
-
1
Set up on the web
Add the client, site, buildings, floors and drawings, then grant your surveyors access to the drawings they’ll cover.
-
2
Survey offline on Android
Surveyors sync once, then work fully offline — placing pins, filling FS/FD forms and capturing photos on site.
-
3
Sync & report
One tap pushes completed surveys back. Review on the web and generate PDF, Excel or CSV reports.
Ready to see Helix FMS on your sites?
Book a walkthrough and we’ll show you the full flow — from drawing upload to a finished report.
